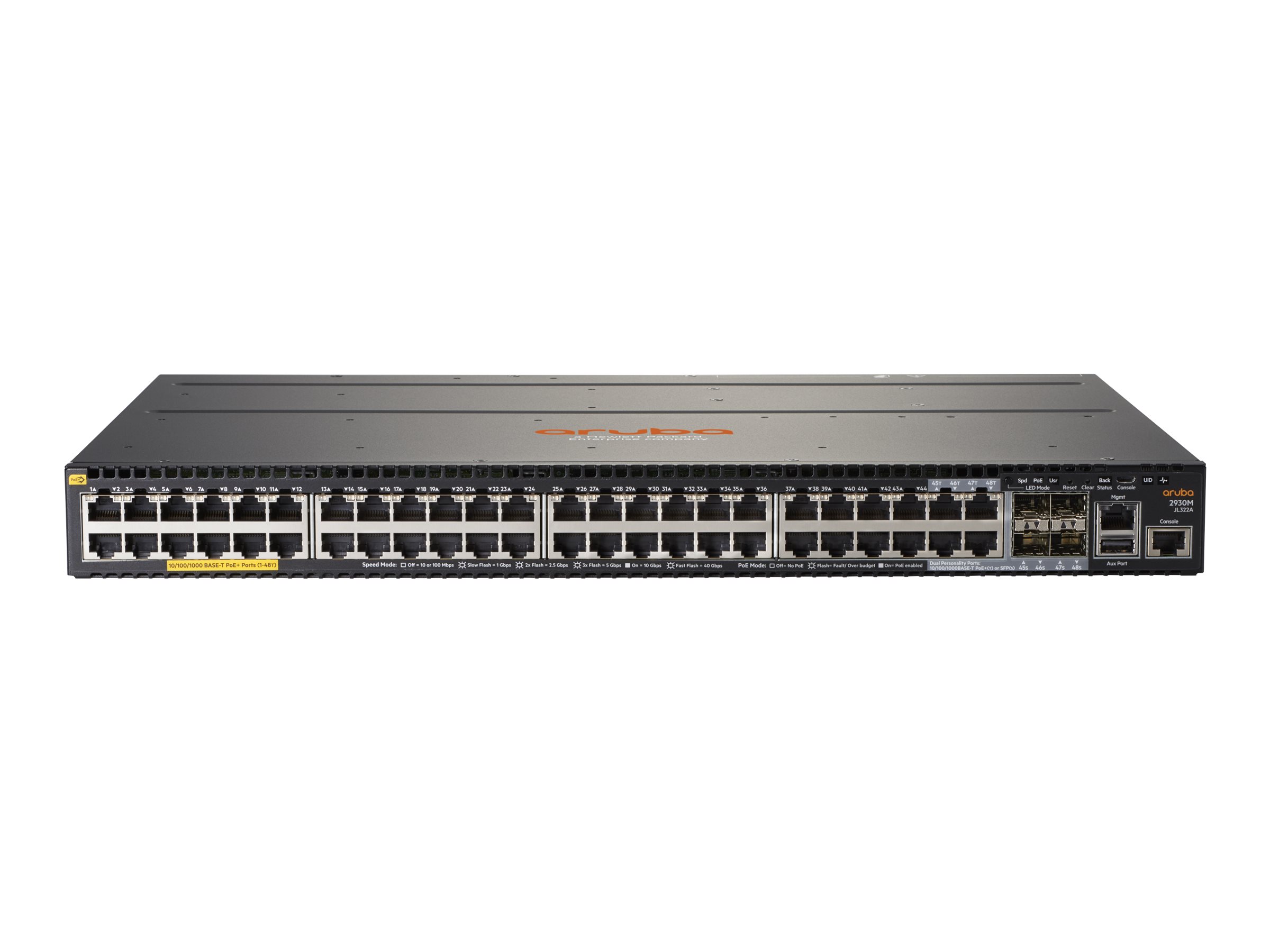

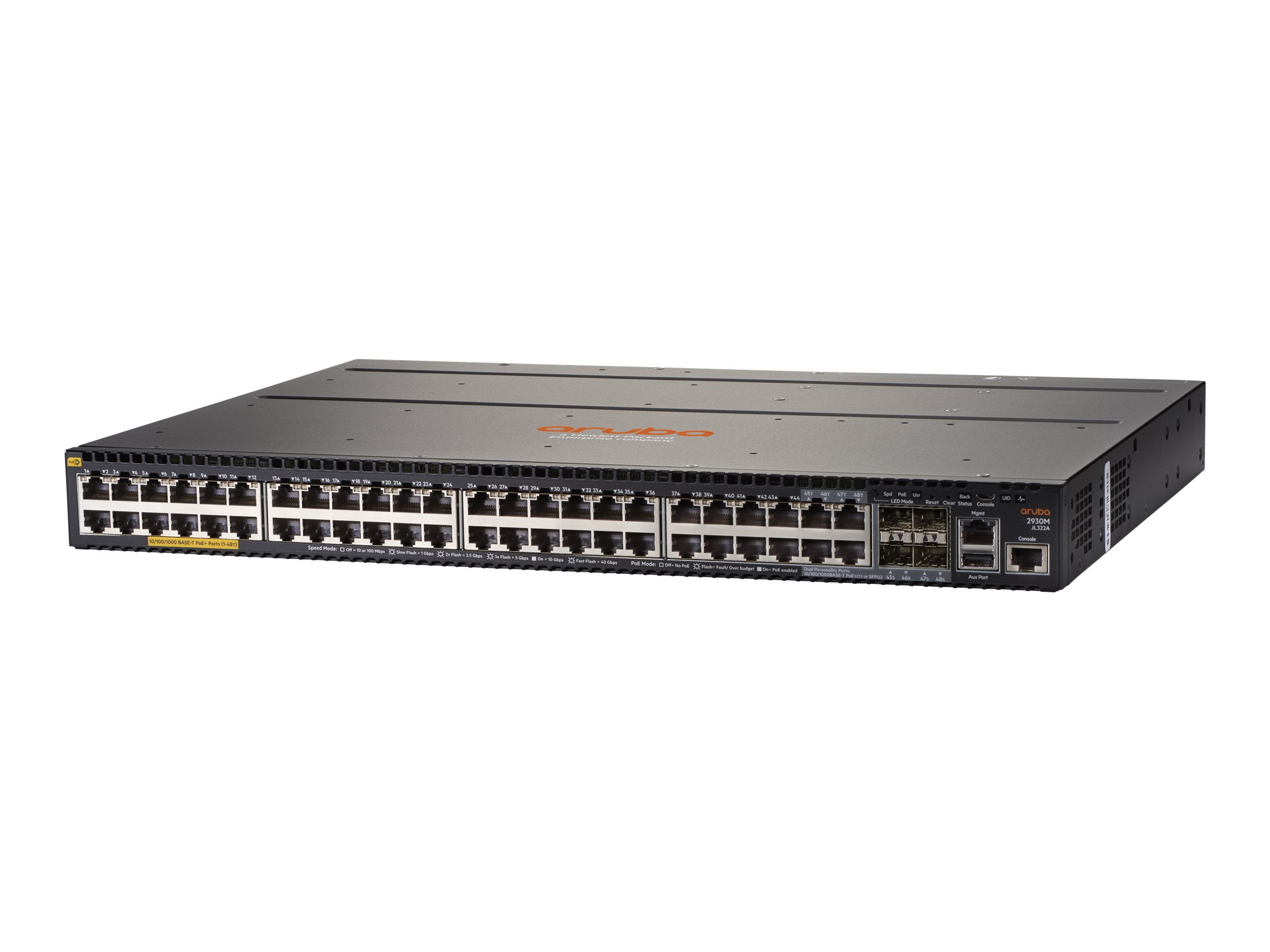

HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch - JL322A
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 44
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-sensing: Yes
VLAN support: Yes
Data transmission
Switching capacity: 176 Gbit/s
Throughput: 112 Mpps
MAC address table: 32768 entries
Latency (10-100 Mbps): 11.8 µs
Latency (1 Gbps): 3.1 µs
Latency (10 Gbps): 3.4 µs
Packet buffer memory: 12.38 MB
Security
DHCP features: DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: MAC-based authentication, Web-based authentication
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Grey
Performance
Built-in processor: Yes
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 1024 MB
Power
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 470 W
Power consumption note: 2 power supplies are supported: JL086A PSU (each): 470W JL087A PSU (each): 860W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 1440 W
Other features
Latency: 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Memory and processor: Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC
I/O ports: (44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Performance management: HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Weight (imperial): 4.65 kg (10.2 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8"")
Operational conditions
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 15 - 95%
Heat dissipation: 355 BTU/h
Weight & dimensions
Width: 43.9 mm
Depth: 442.5 mm
Height: 324.3 mm
Weight: 4.65 kg
Logistics data
Harmonized System (HS) code: 85176990
HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch online kaufen
Der Artikel HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch mit der Art.-Nr. KO-137877 und Hersteller-Nr. JL322A gehört zur Kategorie Netzwerk / Switching Hubs. Bei Netzwerkartikel.de finden Sie passende Netzwerk-, Multimedia- und IT-Produkte für professionelle Anwendungen, Büro, Installation und Ersatzbedarf.
Häufige Fragen zu HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch
Ist der Artikel HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch sofort lieferbar?
Die aktuelle Verfügbarkeit wird direkt auf dieser Artikelseite angezeigt. Wenn Lagerbestand vorhanden ist, kann der Artikel in der Regel kurzfristig versendet werden.
Welche Artikelnummer hat HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch?
Die Artikelnummer lautet KO-137877. Die Hersteller-Artikelnummer lautet JL322A. Die EAN lautet 0190017071251.
Zu welcher Kategorie gehört HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch?
Der Artikel gehört zur Kategorie Netzwerk / Switching Hubs.
Wie erfolgt der Versand?
Der Versand erfolgt abhängig von Verfügbarkeit, Bestellmenge und Versandart. Versandkosten und Lieferzeit werden auf der Artikelseite beziehungsweise im Warenkorb angezeigt.
| Bezeichnung | Wert |
|---|---|
| Abmessungen (Breite x Tiefe x Höhe) | 44.25 cm x 32.43 cm x 4.39 cm |
| Gehäusetyp | An Rack montierbar 1U |
| Gerätetyp | Switch - 48 Anschlüsse - L3 - managed - stapelbar |
| Gewicht | 4.65 kg |
| Größe der MAC-Adresstabelle | 32.768 Einträge |
| Jumbo-Rahmenunterstützung | 9220 Byte |
| Kapazität | IPv4-Einträge in Routingtabelle: 2000 IPv6-Einträge in Routingtabelle: 1000 RIP-Routen: 10000 Statische Routen: 256 |
| Leistung | Durchsatz: 112 Mpps Switching-Kapazität: 176 Gbps Latenz (1 Gbps): 3.1 µs Latenzzeit (10 Gbps): 3.4 µs Latenzzeit (10 Mbps): 98.5 µs Latenzzeit (100 Mbps): 11.8 µs |
| Leistungsmerkmale | Flusskontrolle, Vollduplex-fähig, DHCP Support, BOOTP-Unterstützung, ARP-Unterstützung, VLAN-Unterstützung, IGMP Snooping, Syslog-Unterstützung, DiffServ-Unterstützung, IPv6-Unterstützung, SNTP-Unterstützung, sFlow, STP Support, MSTP Support, ACL Support, QoS, Jumbo-Frames-Support, DHCP-Server, MLD-Snooping, STP Root Guard, UDLD, LLDP-Support, LACP, MIB, Sperre für MAC-Adresse, dynamischer ARP-Schutz, DHCP-Schutz, GVRP, MVRP, NDP, CoS, ToS, OpenFlow-Unterstützung, CPU-Schutz, ICMP, ICMP IRDP, VXLAN, MIB II, LLDP-MED, STP BPDU Guard |
| PoE-Budget | 1440 W |
| Ports | 44 x 10/100/1000 (PoE+) + 4 x Kombi-Gigabit-SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Produktzertifizierungen | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz |
| Remoteverwaltungsprotokoll | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, statisches IP Routing, IGMPv3, OSPFv3, statisches IPv4-Routing, statisches IPv6-Routing, ECMP, RIPng, MLD, CIDR |
| Stromversorgung | Wechselstrom 120/230 V (50/60 Hz) - Spannungsversorgung nicht installiert |
| Untertyp | Gigabit Ethernet |
Lieferzeit: 1-3 Werktage
| Menge | Rabatt | Preis/ST (€) |
|---|---|---|
| 1 | 3428.77 € | |
| 3 | -2.00% | 3360.19 € |
| 5 | -2.00% | 3360.19 € |
| 10 | -3.00% | 3325.91 € |
| 20 | -4.00% | 3291.62 € |
| 50 | -7.00% | 3188.76 € |
| 100 | -8.00% | 3154.46 € |
